ABOKE H Beam Welding Production Line - Product Overview
ABOKE H Beam Welding Production Line is an integrated, intelligent and fully customizable steel structure processing solution, independently R&D and manufactured by ABOKE for global steel structure manufacturing industries. As a core product series, it integrates the whole workflow of H beam processing and is compliant with CE and ISO9001 international quality and safety standards, with products exported to more than 30 countries and regions including Germany, the United States, Saudi Arabia, Russia, Southeast Asia and Australia.
ABOKE H Beam Welding Production Line is an integrated, intelligent and fully customizable steel structure processing solution independently R&D and manufactured by ABOKE, compliant with CE and ISO9001 international quality and safety standards. The product is exported to more than 30 countries and regions including Germany, the United States, Saudi Arabia, Russia, Southeast Asia and Australia, and is widely used in steel structure manufacturing, bridge engineering, heavy machinery and marine engineering fields.
1. Core Equipment Composition & Integrated Workflow
- Integrated four core equipment: H Beam Assembly Machine + Gantry Welding Machine + H Steel Flange Straightening Machine (hydraulic/mechanical dual-mode) + Roller Pass-through Shot Blasting Machine
- One-stop complete workflow: Precision plate assembly → Automatic tack welding → High-efficiency submerged arc welding → Post-welding deformation correction → Surface derusting/cleaning/strengthening
- Realize automated continuous production, minimize manual intervention, and improve overall production efficiency of H beam steel structure processing
2. General Processing Parameters (Core Index)
| Processing Index | Standard Range | Expandable Range | Applicable Steel Grade |
|---|
| Max H Beam Web Height | 200-1500mm | Up to 2000mm | Q235B, Q345B, SS400, A36 |
| Max H Beam Flange Width | 200-800mm | Up to 1000mm | Carbon steel, low-alloy steel |
| Max H Beam Flange Thickness | ≤40mm (mechanical) | Up to 80mm (hydraulic) | - |
| Flange Tensile Strength | ≤420MPa (mechanical) | ≤600MPa (hydraulic) | - |
| Welding Speed | 0.5-2m/min | Custom adjustable | - |
| Shot Blasting Surface Standard | A-B Sa2-Sa2.5 | Customizable | - |
3. Key Performance of Core Equipment

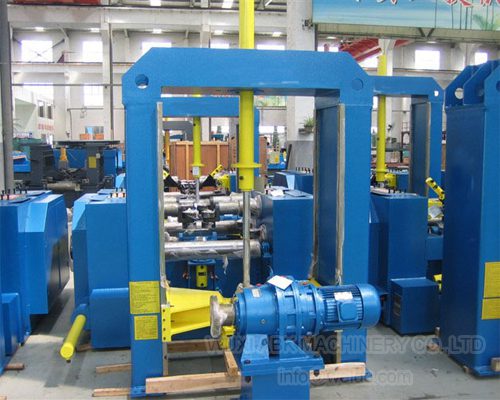

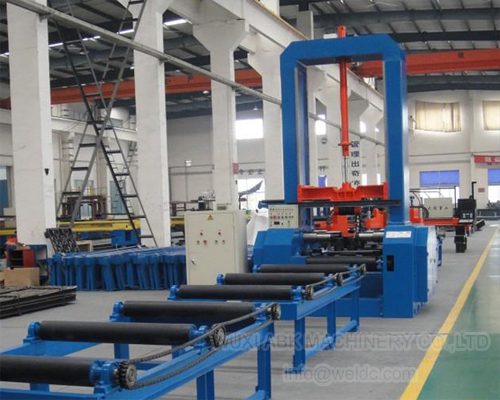

H Beam Assembly Machine
| Performance Index | Parameter/Advantage |
|---|
| Positioning Accuracy | ±0.3mm (laser-guided + machine vision dual positioning) |
| Clamping System | 3-group independent hydraulic clamping, eliminate feeding wobbling |
| Tack Welding Mechanism | 16-point automatic positioning, adjustable solder joint spacing |
| Web Plate Size Range | Height 200-2000mm, Thickness 6-32mm, Length 4000-15000mm |
| Flange Plate Size Range | Width 200-600mm (expandable to 800mm), Thickness 6-40mm, Length 4000-1500mm |
| Total Power | 8Kw (excluding welding power source) |

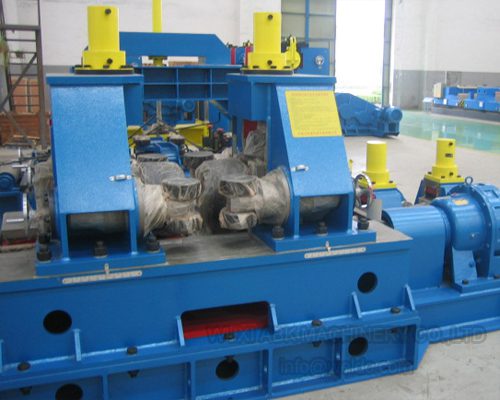

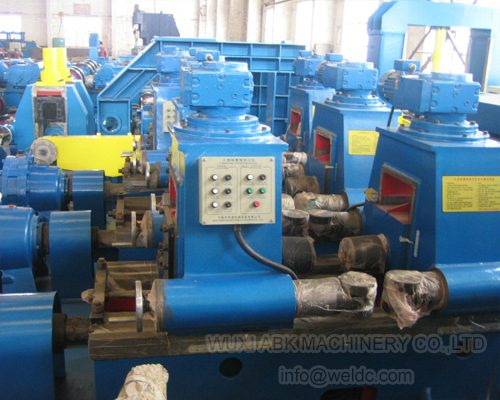

H Steel Flange Straightening Machine (Dual-Mode)
| Performance Index | Mechanical Model (HYJ-600/HYJ-800) | Hydraulic Model (YTJ-60B/YTJ-80) |
|---|
| Max Flange Thickness | ≤20mm/≤40mm | ≤60mm/≤80mm |
| Tensile Strength Adaptation | ≤420MPa (both) | ≤600MPa (both) |
| Straightening Speed | 5.7m/min/17.0m/min | 6.4m/min/6.0m/min |
| Correction Accuracy | ±0.5mm/m (all models) | ±0.5mm/m (all models) |
| Machine Power | 9KW/24.2KW | 37KW/44KW |
| Machine Weight | 7000kg/9000kg | 25000kg/28000kg |
| Operation Feature | Man-machine touch interface, pressure digital display, abnormal automatic alarm | Same as mechanical model |

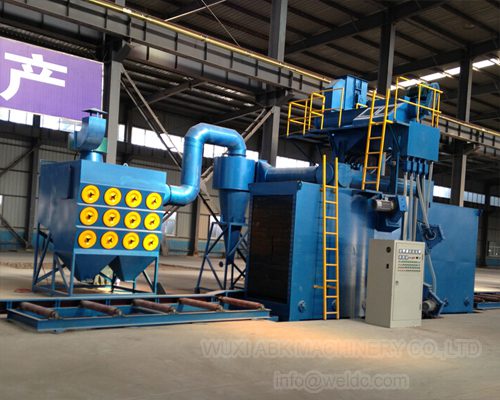

Roller Pass-through Shot Blasting Machine
| Performance Index | HP0816 | HP1018 | HP1220 |
|---|
| Allowable Passing Section | 800×1600mm | 1000×1800mm | 1200×2000mm |
| Max Workpiece Length | 16000mm | 16000mm | 16000mm |
| Processing Speed | 0.4-2.5m/min | 0.4-2.5m/min | 0.4-2.5m/min |
| Abrator Configuration | 8×11kw | 8×11kw | 8×15kw |
| Dust Removal Efficiency | ≥99.5% | ≥99.5% | ≥99.5% |
| Total Power | About 140kw | About 140kw | 172kw |
| 24h Continuous Operation | Supported | Supported | Supported |

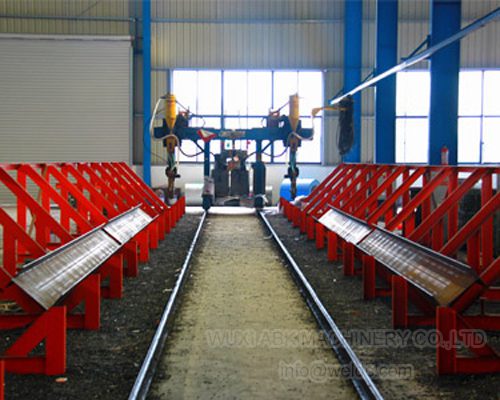

Gantry Welding Machine
- Welding Process: Advanced submerged arc welding (SAW), 3-5 times faster than traditional manual welding
- Structural Design: Dual-column gantry structure, twin welding torch configuration, vertical adjustment accuracy ±0.1mm
- Flange/ Web Adaptation: Flange width 150-800mm, web height 200-1500mm
- Additional Feature: Integrated flux recovery system, reduce welding material waste; adaptable for boat-like weld of H beam
4. Core Technological Advantages
- Intelligent Positioning & Assembly: Laser + machine vision dual positioning, automatic centering, no manual adjustment required
- Dual-Mode Straightening: Hydraulic/mechanical optional, matching light/medium/heavy H beam processing needs
- Efficient Shot Blasting: 24h continuous operation, one-time surface derusting/cleaning/strengthening, improve painting adhesion
- Stable Welding Performance: Submerged arc welding with adjustable speed, high welding strength and low defect rate
- Durable Equipment Design: All-alloy steel straightening rollers (special heat treatment), 16mm chromium alloy wear-resistant lining for shot blasting machine, service life increased by 50%
- Intelligent Operation: Man-machine touch interface, pressure digital display, abnormal automatic alarm, remote monitoring optional
5. Customization Capabilities
- Processing Range Customization: Expand web/flange size, adjust straightening/welding speed according to production needs
- Equipment Matching Customization: Flexible combination of core equipment, optional laser seam tracking system, visual inspection system, automatic feeding system
- Workshop Layout Customization: Professional engineering team designs personalized process layout based on workshop space, realize seamless connection of all processes
- Technical Parameter Customization: Adjust hydraulic system pressure, clamping force, shot blasting quantity and dust removal parameters
6. Purchase & Delivery Terms
| Term Type | Specific Content |
|---|
| Minimum Order Quantity (MOQ) | 1 set; support one-stop purchase of complete line or separate purchase of single core equipment |
| Lead Time | Standard configuration: 30-45 working days after deposit; Custom configuration: 45-90 working days (shot blasting machine high customization) |
| Payment & Delivery | Transparent pricing, no hidden costs; provide complete export documents, arrange global port shipping |
| Production Feedback | Real-time production progress update, follow up the whole process until equipment delivery |
7. After-sales Service & Quality Assurance
- Warranty Policy: 12-month full warranty for the entire production line (from equipment arrival); 3-year exclusive warranty for hydraulic straightening machine core components (alloy steel straightening roller, hydraulic system)
- Lifetime Support: Free supply of conventional spare parts; permanent professional technical guidance for operation, daily maintenance and fault troubleshooting
- On-site Service: Free on-site operation and maintenance training for operators; on-site installation/commissioning available for large customers
- Value-added Service: Turnkey engineering services (overall workshop design, equipment debugging, after-sales tracking) for steel structure manufacturing projects
- Certification Guarantee: All equipment with CE safety certification and ISO9001 quality management system certification, compliant with international industrial standards
8. Application Scenarios
- Steel structure building: Factories, warehouses, stadiums, super high-rise building steel structure production
- Bridge engineering: Bridge girder, T-beam, U-rib welding production line manufacturing
- Heavy machinery & energy: Wind power tower heavy steel frame fabrication, heavy machinery frame rectification
- Marine engineering: Ship structural parts repair, shipbuilding steel structure processing
- Prefabricated construction: Prefabricated building steel structure, integrated processing of steel plate/steel pipe
- H Beam Welding Line - Purchasing Decision FAQ
All answers integrate ABK’s core product parameters, professional terminology and high-frequency search keywords, with clear itemization meeting international reading habits, and fully adapted to Google SEO optimizatio
H Beam Welding Production Line - Purchasing Decision FAQ | ABOKE
This FAQ addresses the most frequently asked questions and core purchasing concerns for the ABOKE H Beam Welding Production Line, covering pricing, lead time, warranty, customization, and minimum order quantity. All answers are based on ABOKE’s official product parameters, genuine service terms and customizable solutions, with clear, itemized details to help global customers make informed purchasing decisions. The content integrates high-frequency industry search keywords and complies with international reading habits, while reflecting ABOKE’s professional strength in steel structure welding equipment R&D, manufacturing and after-sales support.

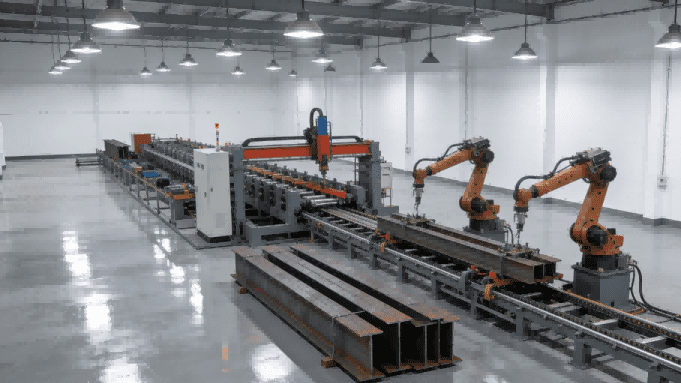

1. Q: How much does an H beam welding line cost?
A: The price of ABOKE H beam welding production line ranges from USD 30,000 to USD 150,000, with 100% transparent quotation and no hidden costs for any accessories, technical support or basic debugging. The specific pricing is determined by multiple core factors, and our professional team will provide a detailed classified quotation list and matching suggestions according to your actual needs:
- Whole line equipment configuration: The flexible combination of core equipment including ABOKE H beam assembly machine, gantry welding machine, H steel flange straightening machine (hydraulic/mechanical dual-mode), roller pass-through shot blasting machine is the core basis of pricing
- Equipment model grade: Different models of the same type of equipment have differentiated quotations based on processing range and performance, such as ABOKE YTJ-80 hydraulic straightening machine is priced higher than HYJ-600 mechanical straightening machine, HP1220 roller pass-through shot blasting machine is higher than HP0816 model
- Automation and intelligent configuration: The addition of high-end intelligent systems such as laser-guided positioning, laser seam tracking system, machine vision centering system and remote monitoring system will affect the overall pricing of the production line
- Non-standard customization requirements: Customized expansion of H beam processing range, personalized production line process layout, and additional optional configurations such as automatic feeding system and visual inspection system will be quoted separately according to technical difficulty
- Actual production demand matching: We will customize a targeted and cost-effective quotation plan according to your H beam steel structure production capacity, workshop space size, and one-stop matching needs of the whole welding production line
2. Q: What is the lead time for H beam welding line?
A: ABOKE strictly abides by the international delivery cycle standard and provides real-time production progress feedback for all H beam welding production line orders, with the lead time divided by equipment configuration and customization degree. We will flexibly arrange production and port shipping according to your project construction schedule to ensure the equipment is commissioned and put into production on time:
- Standard integrated H beam welding line: 30–45 working days after receiving the deposit, matching conventional mature models including ABOKE HYJ-800 mechanical straightening machine, HP1018 roller pass-through shot blasting machine, standard H beam assembly machine and gantry welding machine, with no additional customization requirements
- Customized H beam welding production line: 45–60 working days after receiving the deposit, applicable to orders with non-standard processing range expansion, personalized workshop layout design, and matching of high-end models such as ABOKE YTJ-80 hydraulic straightening machine and HP1220 roller pass-through shot blasting machine
- Single core equipment high-level customization: ABOKE roller pass-through shot blasting machine has a maximum lead time of 90 working days for orders with high-level personalized customization such as adding environmental protection dust removal system, visual inspection system and fully automatic feeding system
- Global delivery and logistics support: We are responsible for arranging professional port shipping for the entire H beam welding line, and provide complete export documents including CE and ISO9001 certification to ensure smooth customs clearance and transportation in your country or region
3. Q: What is the warranty for H beam welding line?
A: ABOKE provides a graded and multi-dimensional warranty service system for the whole set of H beam welding production line and all core supporting equipment, complying with international industrial quality and safety standards, and the warranty time is uniformly calculated from the date the equipment arrives at your workshop:
- Overall warranty for the entire H beam welding line: 12 months of free warranty for the whole line, covering all core equipment including ABOKE H beam assembly machine, gantry welding machine, H steel flange straightening machine, roller pass-through shot blasting machine, including quality problems of all main mechanical and electrical parts and free on-site maintenance labor costs
- Exclusive extended warranty for key core components: 3 years of free warranty for the core parts of ABOKE hydraulic straightening machine, including all-alloy steel straightening roller, high-pressure hydraulic system and key transmission components, with free replacement of damaged parts and on-site installation services within the warranty period
- Lifetime after-sales technical support: Free supply of conventional spare parts for the entire H beam welding production line for life, and permanent professional technical guidance for equipment daily operation, regular maintenance and fault troubleshooting via online, video and telephone channels
- International certification and quality guarantee: All ABOKE H beam welding line equipment has passed CE safety certification and ISO9001 quality management system certification, complying with EU and global industrial equipment production and use standards
- On-site maintenance service guarantee: For major equipment faults that cannot be solved by remote technical guidance, we can arrange professional senior engineers to go to the site to provide maintenance and debugging services for your H beam steel structure welding equipment
4. Q: Can you customize H beam welding line for my workshop?
A: Yes, ABOKE is a professional manufacturer specializing in one-stop full non-standard customization of H beam welding production line, with a mature R&D and design team and rich customization experience. We can fully adjust the equipment configuration, processing parameters and production line layout according to your actual workshop space, H beam steel structure processing requirements and production capacity, with no additional design fee for basic customization services:
- H beam steel processing range customization: Freely expand or adjust the core processing parameters of the welding line to match your light, medium and heavy steel structure production needs, the maximum web height of H beam can be expanded to 2000mm, the maximum flange width to 1000mm, and the maximum flange thickness to 80mm, suitable for processing symmetrical, asymmetrical, eccentric and variable cross-section H beam steel
- Core equipment matching customization: Flexible combination of ABOKE H beam assembly machine, gantry welding machine, hydraulic/mechanical H steel flange straightening machine, roller pass-through shot blasting machine according to your production process, and optional configuration of high-end intelligent systems such as laser seam tracking system, machine vision centering system, visual inspection system, automatic feeding system and remote monitoring system
- Production line workshop layout customization: According to your workshop area, process flow requirements and on-site construction conditions, our professional engineering team designs the integrated layout of H beam assembly, welding, post-welding straightening and surface shot blasting treatment, realizing the seamless connection of the whole production process and maximizing production efficiency
- Key technical parameter customization: Adjust the welding speed, straightening speed, shot blasting efficiency and other core production parameters of the H beam welding line according to your actual production capacity demand, and customize the hydraulic system pressure, clamping force and positioning accuracy of the assembly machine and straightening machine
- One-stop customization service support: Our engineering team provides a free overall customized solution and detailed CAD design drawings for the H beam welding production line, and conducts multiple technical confirmations and revisions with you to ensure the customization scheme is 100% matching your actual production needs
5. Q: What is the minimum order quantity (MOQ) for H beam welding line?
A: ABOKE sets the minimum order quantity (MOQ) of 1 set for the entire H beam welding production line and all single core supporting equipment, supporting multiple flexible purchase modes to meet the different needs of new workshop construction, old production line transformation and equipment matching upgrade, and provides more favorable pricing and delivery terms for bulk orders:
- One-stop purchase of the complete H beam welding line: 1 set of complete H beam welding production line including ABOKE H beam assembly machine, gantry welding machine, H steel flange straightening machine, roller pass-through shot blasting machine and supporting intelligent control system, suitable for the construction of new steel structure manufacturing workshops and one-stop production needs
- Separate purchase of single core equipment: 1 set for any single core equipment of the ABOKE brand, including H beam assembly machine, hydraulic/mechanical H steel flange straightening machine, roller pass-through shot blasting machine, gantry welding machine, suitable for matching and upgrading your existing H beam steel structure production line
- Bulk purchase of multiple sets of production lines: For customers who need to purchase multiple sets of ABOKE H beam welding lines for large-scale production, we provide more favorable ex-factory pricing, flexible deposit and payment terms, and can reasonably adjust the production and delivery cycle according to your project construction progress
- Value-added services for all orders: For all orders including single set and bulk purchase, we provide free on-site operation and maintenance training for your operators, and for large customers and key projects, we can provide one-stop turnkey engineering services including overall workshop design, equipment on-site installation, commissioning, operator training and long-term after-sales tracking
- Global supply with MOQ of 1 set: The MOQ of 1 set is applicable to all global customers, and we can provide complete and standardized export documents for the H beam welding production line to ensure smooth customs clearance and transportation in your country or region
